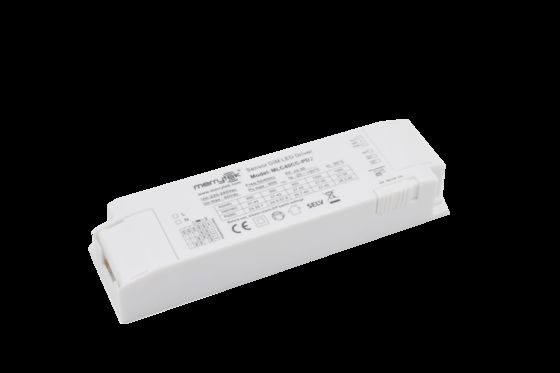

40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA

  • 40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
محل منبع شنژن ، چین
نام تجاری Merrytek
گواهی CE、UKCA、SAA
شماره مدل MLC40CC-PD2
مقدار حداقل تعداد سفارش 100 قطعه
قیمت قابل مذاکره
جزئیات بسته بندی تخته کیسه پلی اتیلن، کارتن (K=A)
زمان تحویل 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت
شرایط پرداخت t/t
قابلیت ارائه 10000 قطعه در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
ولتاژ خشم 220-240Vac 50Hz /60Hz قدرت آماده ≤0.5w （بدون تجهیز با سنجش سر تقسیم
عامل قدرت ≥0.95 (حداکثر بار 230 ولت) جریان جریان ≤30a （100us نیمه جریان）@230V AC
حالت کار CC رتبه IP IP20
طول عمر گارانتی 5 ساله@TA50/TC70 ℃ 230 ولت بار کامل
برجسته کردن

40W isolated LED driver,sensor DIM LED driver with warranty,LED driver color temperature selection

,

sensor DIM LED driver with warranty

,

LED driver color temperature selection
پیام بگذارید
توضیحات محصول
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA
Product Features
  • Isolated two-stage circuit frame, full dimming and flicker-free
  • Support DIP switches to set the current gear; Slide Switches to select the CC/CW/WW
  • Support 8.5V auxiliary power supply, with sensing split head can achieve integrated sensing function
  • Equip with PWM dimming control port
  • Suitable for various microwave sensors or wireless smart modules
Parameters
Input
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W(No Equip with sensing split head)
Surge 1KV(L/N,EN61000-4-5)
Power factor ≥0.95 (230V Max load)
Input current ≤0.23A @230VAC full load
Inrush current ≤30A(100us half-current)@230V AC
Working efficiency ≥86% (230V Max load)
Output
Working mode CC
Type of load LED
Flick ≤5%
Constant current accuracy Constant current accuracy ±5%
Auxiliary driver parameters 8.5 ±0.5VDC Current: 100mA Max
No-load output voltage 60VDC Max
Full load power 40W Max
Load current 900mA/950mA/1000mA/1050mA
Load output voltage range 900mA / 20 -42VDC
950mA / 20-45VDC
1000mA /20-40VDC
1050mA /20-38VDC
Abnormality Protection Requirements
Protection mode Input overvoltage protection; Input no-load protection no-load protection Input short circuit protection
Environmental Requirements
Operating temperature Built-in:-25…+60℃
Tcase-max 85℃
Storage temperature/humidity -40℃…+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards
Certificate CE,UKCA,SAA
Environmental requirement RoHS2.0, Reach requirement
Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Withstand voltage Primary to secondary: 3.75KVAC
IP Rating IP20
Product Category Class II
Others
Wiring method Press terminal, wire diameter:0.5-1.0mm2
Installation Built-in
Package PE bag clapboard, carton(K=A)
Net weight 135 ±5g
Lifetime 5years warranty@Ta50/TC70℃,230V full load
Product Information
Wiring and function
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 0
Dimension (Unit:mm)
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 1
Parameter Curve
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 2 40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 3
Life Time Curve
40W Isolated Sensor DIM LED Driver with Color Temperature Selection, 900-1050mA 4
Output Current Setting
Output current Voltage range S1 S2
1050mA 20-38V ON ON
1000mA 20-40V ON -
950mA 20-42V - ON
900mA 20-42V - -
Initialization

After power-on, it is half bright, and after self-test, it enters the 0-10V port voltage setting brightness (suspended for full bright).

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice
  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
