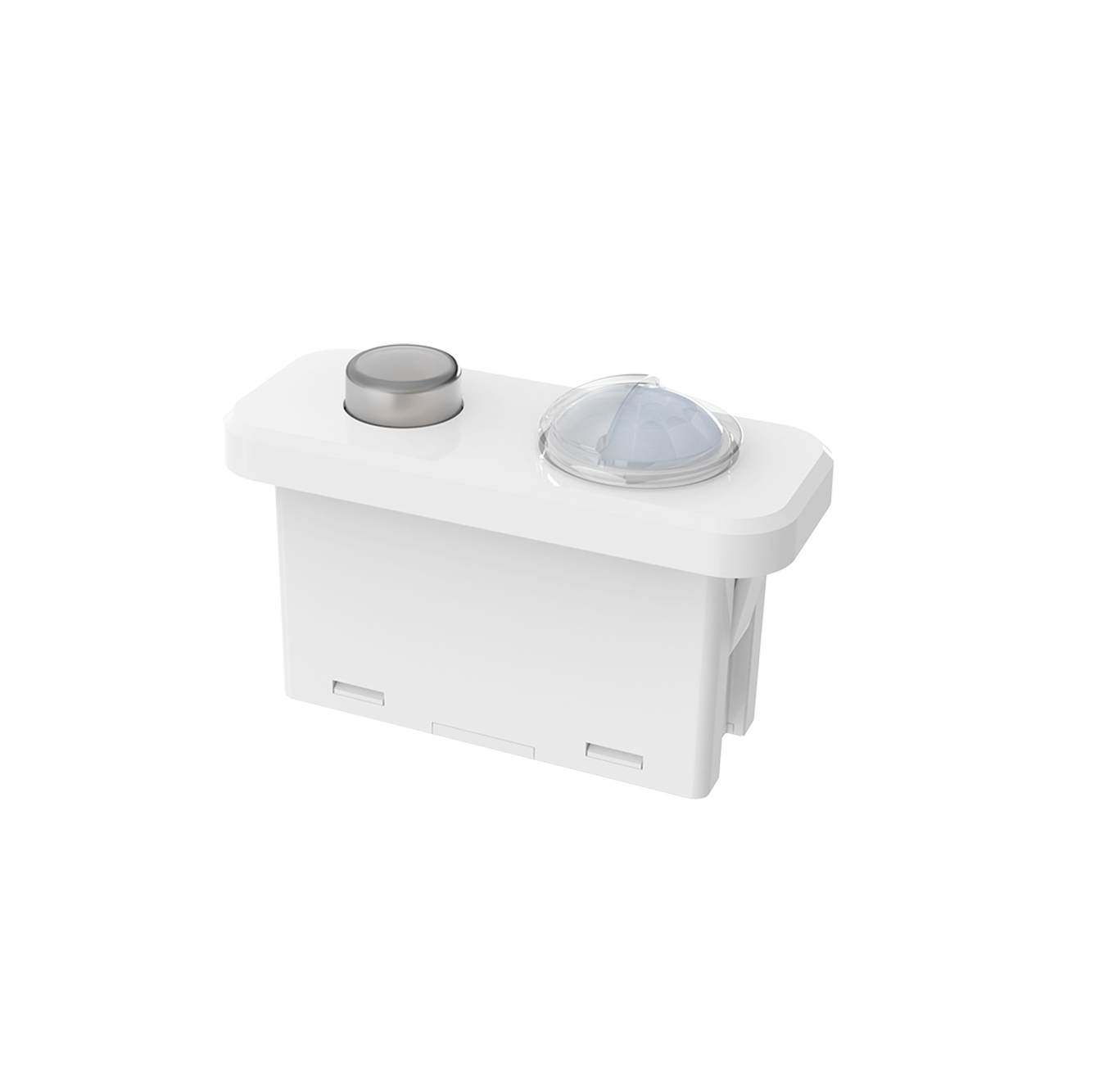

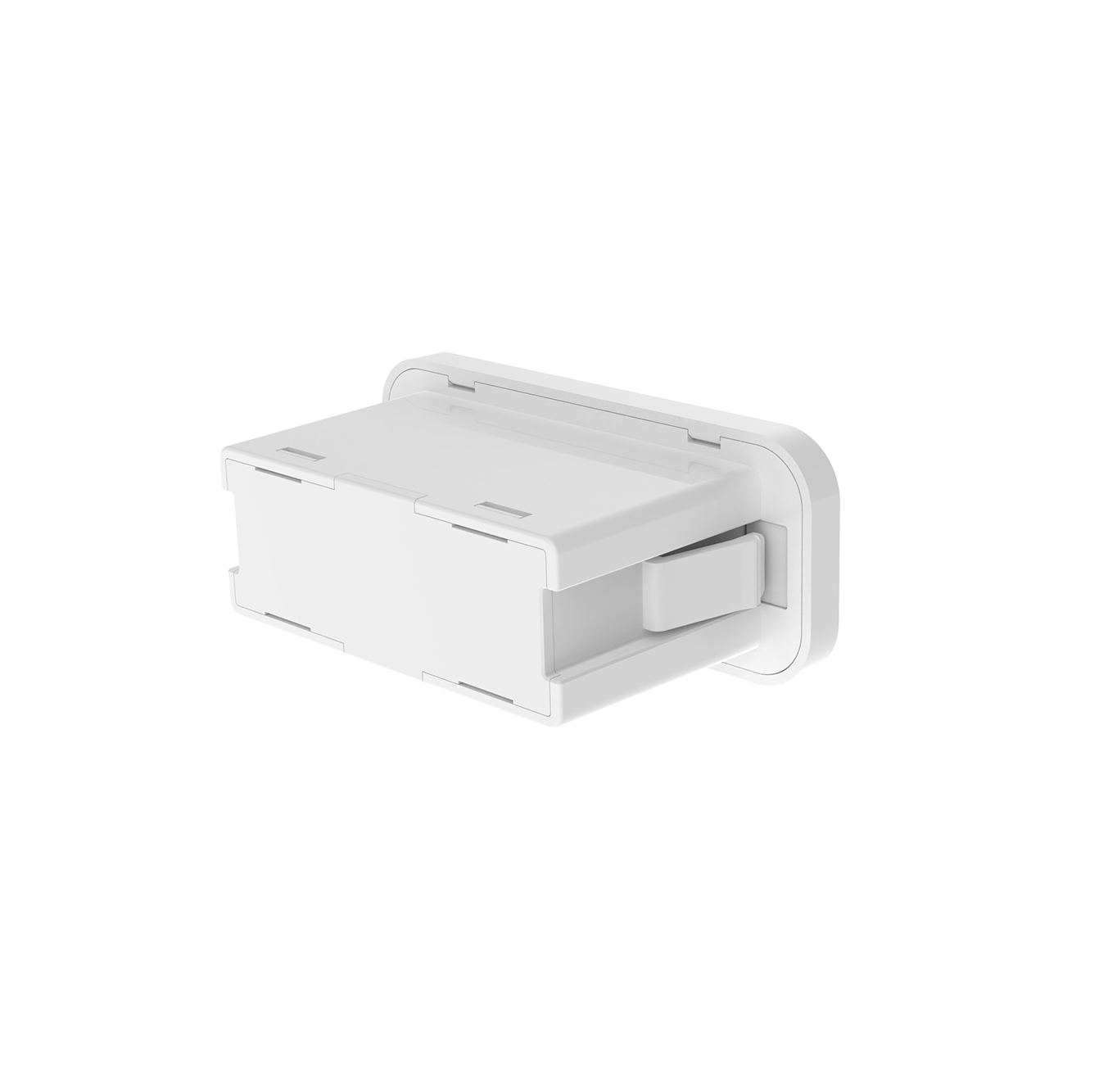

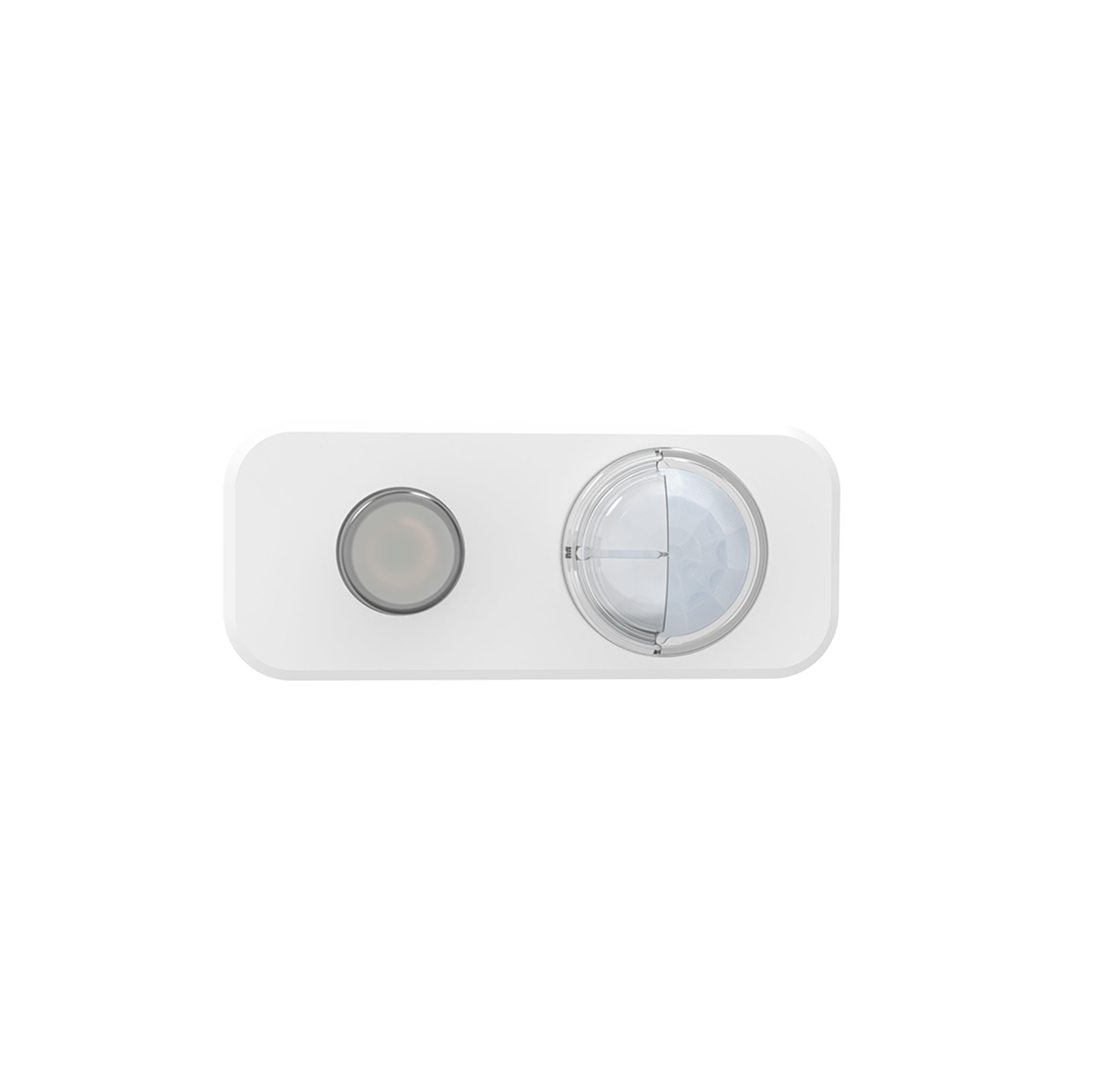

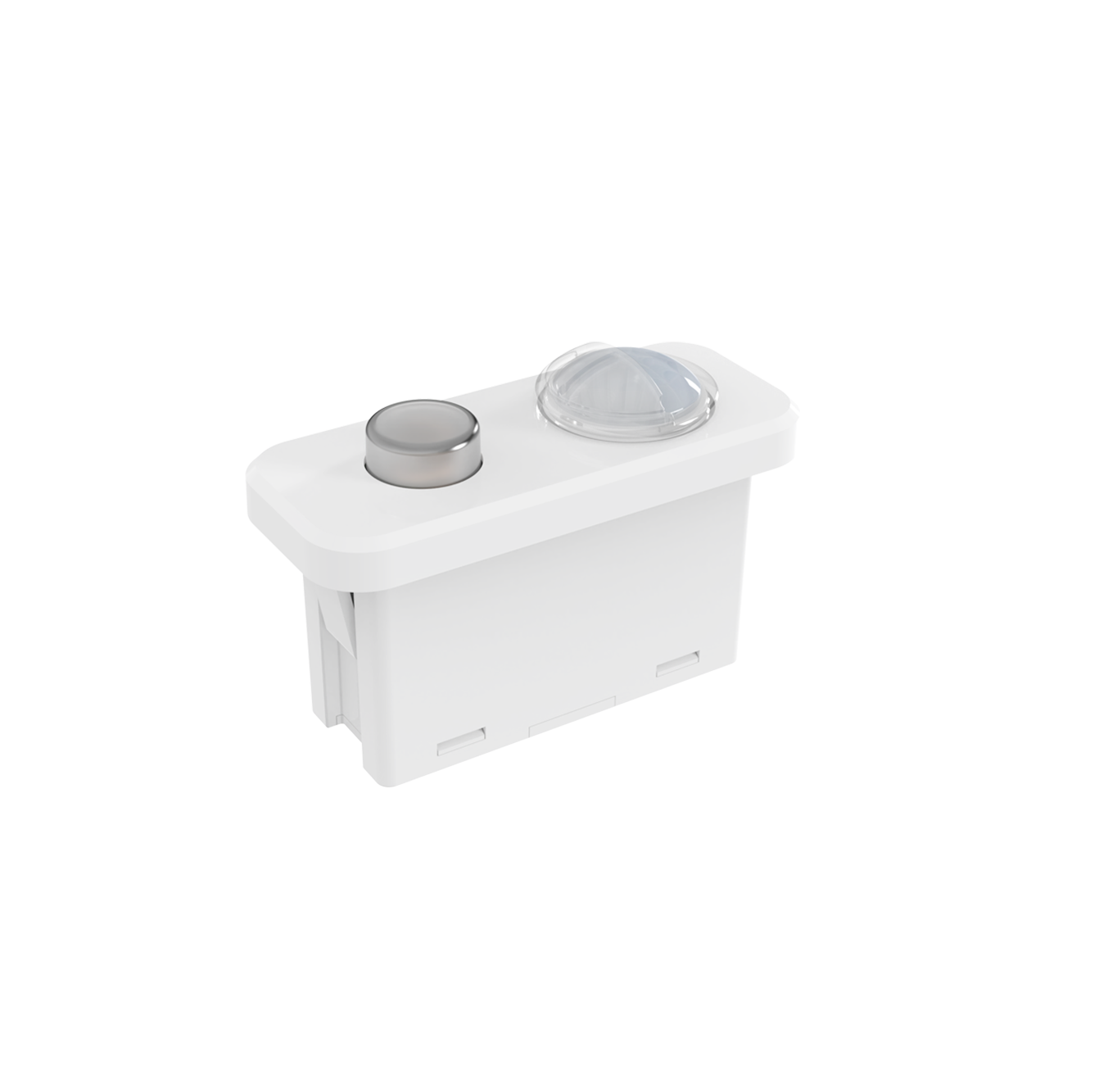

Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug

  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
  • Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
محل منبع شنژن، چین
نام تجاری Merrytek
گواهی CE
شماره مدل MDA182D IR
مقدار حداقل تعداد سفارش 100
قیمت قابل مذاکره
جزئیات بسته بندی تخته چوبی + کارتن (K=A)
زمان تحویل 1، نمونه و سفارش کوچک: در عرض 5 روز کاری پس از دریافت پرداخت شما ((وقتی در انبار). 2, سفارش عمده: 4
شرایط پرداخت T/T
قابلیت ارائه 10000/ماهیانه
جزئیات محصول
ولتاژ نامی 12-24V DC جریان عملیاتی 12±5mA@16VDC
ولتاژ موج دار <100mvp-p سیگنال خروجی DALI تیره شدن
حالت تشخیص تشخیص PIR ارتفاع نصب معمولی 3 متر (حداکثر 4 متر)
رتبه بندی IP IP20 طول عمر 5 سال ضمانت TA (داخلی)
برجسته کردن

DALI motion sensor dimmable PIR

,

Zhaga Book20 socket motion detector

,

D4i certified plug play sensor
پیام بگذارید
توضیحات محصول
DALI-2 & D4i Certified Dimmable PIR Motion Sensor
Zhaga Book20 socket compatible plug-and-play motion sensor with DALI-2 and D4i certification for seamless integration with D4i drivers.
Product Features
  • DALI-2 & D4i certified for compatibility with D4i drivers
  • Motion sensor instance type 3 (303) and light sensor instance type 4 (304)
  • Indoor maximum mounting height of 4m with PIR motion detection
  • All sensor parameters configurable via DALI central controller
  • Zhaga Book20 socket for plug-and-play installation
Technical Parameters
Input
Rated voltage12-24V DC
Operating current12±5mA @16V DC
Ripple voltage<100mVp-p
Output
Output signalDALI dimming
Sensor Parameters
Detection modePIR detection
Detection areaDALI master setting
Hold timeDALI master setting
Daylight sensorDALI master setting
Daylight priorityDALI master setting
Dimming levelDALI master setting
Detection range (radius)Ceiling installation 3m high: r≥2.5m (100% sensitivity, 60㎡ indoor open space)
Installation heightTypical 3m (4m Max)
DALI Parameters
Motion instance62386-303
Daylight instance62386-304
DALI draw2mA
Environment
Working temperature-20℃ to +55℃
Storage temperature-40℃ to +80℃, Humidity ≤85% (non-condensing)
Certification Standards
CertifiedCE
Environmental requirementsRoHS 2.0, REACH compliant
IP RatingIP20
Other Specifications
Wiring2 pin PH2.0 terminal
Installation requirementsZhaga Book20 installation
Packaging requirementsClapboard + Carton (K=A)
Net weight15.8±3g
Lifetime5 years warranty @Ta (indoor)
Function Description
FunctionConfiguration
ON/OFF functionDALI master setting
2-step dimming functionDALI master setting
3-step dimming functionDALI master setting
Daylight harvestingDALI master setting
Daylight priorityDALI master setting
Network functionDALI master setting
Product Information
Dimensions (Unit: mm)
Product dimension diagram Product dimension detailed view
Cut-hole size
Function
Product function diagram
Wiring
Wiring diagram
Installation Instruction
Installation instruction diagram
Detection Range
Detection range diagram
Initialization
After switching on power, sensor will warm up for 12 seconds then start to work.
Default Settings
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%
Application Notice
  • Installation should be performed by professional electrician with power turned off
  • PIR sensor cannot penetrate materials - ensure no obstacles between sensor and moving objects
  • Detection may be difficult when people wear thick clothing in cold weather
  • Heat signals from air conditioners or heating sources may cause false triggering
  • For indoor use only - outdoor sunlight affects detection performance
  • Dimming performance varies with different DALI-2 drivers
  • Daylight threshold measured in sunny environments without shadows
  • Detection distance affected by height, mounting position, and environmental temperature
  • Requires stable DC power supply with input voltage stability and low ripple factor (<100mV)
  • Test with at least 5 units before mass installation in new environments
Note: When ambient temperature approaches human body temperature range (36℃~37℃), PIR motion detection significantly weakens. When ambient or LED tray temperature exceeds 55℃, false triggering may occur - reduce sensitivity or consider alternative sensor placement.
