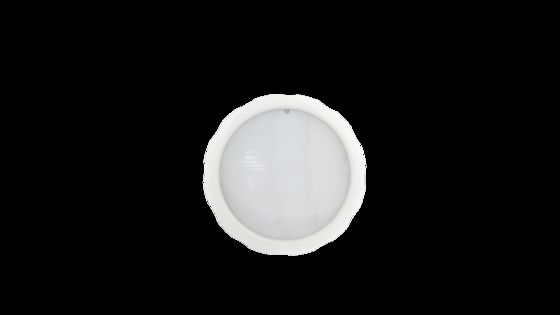

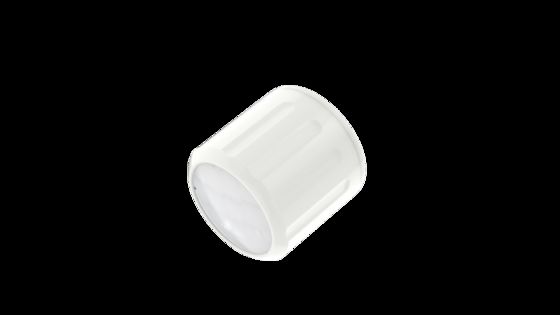

Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available

  • Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available
  • Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available
محل منبع شنژن ، چین
نام تجاری Merrytek
گواهی CE UL-60730-1
شماره مدل mc079d ir di
مقدار حداقل تعداد سفارش 100 قطعه
قیمت قابل مذاکره
جزئیات بسته بندی تخته چوبی + کارتن (K=A)
زمان تحویل 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت
شرایط پرداخت t/t
قابلیت ارائه 10000 قطعه در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
ولتاژ دارای امتیاز 12 ± 1VDC سیگنال خروجی سیگنال ضخیم کننده 0-10VDC
حالت تشخیص تشخیص PIR محدوده تشخیص (شعاع) ۲-۴ متر (در محیط داخلی، حساسیت ۱۰۰٪، بدون نور مستقیم خورشید به سنسور)
ارتفاع نصب معمولا 10 متري (حداقل 12 متري) دمای کار 0 ~ 35 ℃
رتبه IP IP65 طول عمر 3 سال گارانتی @ Ta
برجسته کردن

Mini PIR motion sensor with remote,Highbay PIR sensor 12m range,PIR motion detector remote control

,

Highbay PIR sensor 12m range

,

PIR motion detector remote control
پیام بگذارید
توضیحات محصول
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available
Product Feature
  • Earphone interface
  • 12 meters maximum installation height, suitable for most warehouses
  • Mini PIR motion detector for High Bay Lights
  • IP65 design
  • Sensor parameters can be adjusted by remote
  • High mounting PIR sensor
Parameters
Input
Rated voltage 12±1VDC
Operating Voltage 12V DC
Ripple voltage <100mVp-p
Output
Output signal √0 -10VDC dimming signal
Sensor parameters
Detection mode PIR detection
Daylight priority Switch ON | 5Lux/15Lux/30Lux/50Lux | 100Lux | 150Lux
Switch OFF | 150Lux | 200Lux | 300Lux
Dimming level 10%, 20%, 30%, 50%
Detection range (radius) 2-4m (indoor,sensitivity 100%,no direct sunlight to sensor)
Installation height Typical 10m (12m Max)
Environment
Working temperature 0~35℃
Storage temperature -20℃~+80℃ Humidity: 10%-95% (non-condensing)
Certification standards
Certified UL 8750(Pending)
Environmental requirements Comply with RoHS 2.0, Reach requirements
IP Rating IP65
Other
Wiring Earphone interface
Installation requirements Mount center or side of highbay
Packaging requirements Clapboard + Carton(K=A)
Net weight 80g
Lifetime 3 years warranty @Ta
Function description
Function Setting
ON-OFF function Stand-by Period be set to "0s"
2-step dimming Stand-by Period be set to "+∞"
3-step dimming Stand-by Period be set to "10s/1min/3min/5min/10min/30min"
Daylight priority Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux"
Daylight harvesting N/A
Product Information
Dimension (Unit:mm)
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 0
Function
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 1
Wiring
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 2
MC079D IR DI
Installation Instruction
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 3
Detection Range
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 4
Remote
MH12
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 5
MH10
Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available 6
Initialization

After switch on power, sensor will be warmed 45-60s then start to work.

Default setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s

Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment,and etc.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
