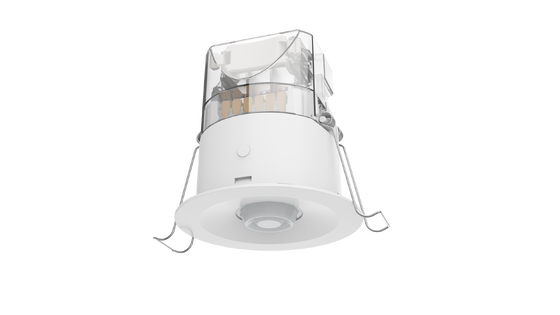

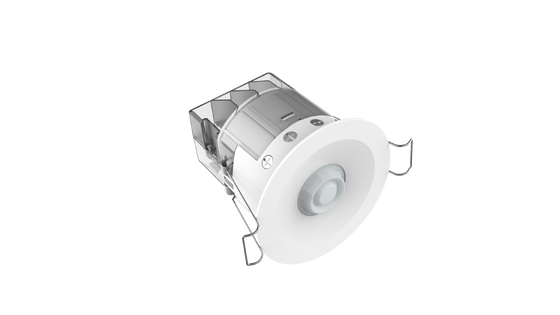

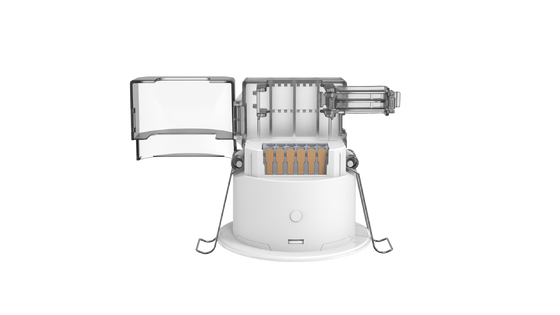

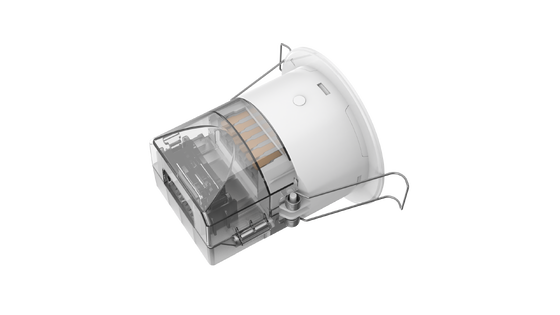

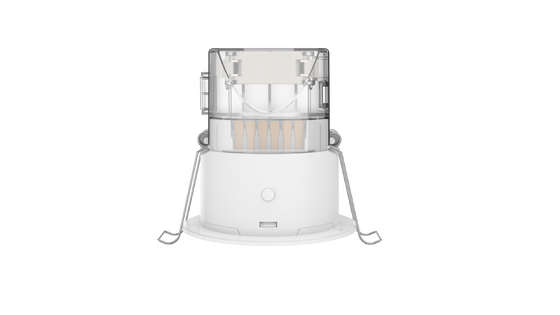

Easy use series dual channel output flush-mounted PIR Occupancy Switches Occupancy detectors and motion detectors
| محل منبع | چین |
|---|---|
| نام تجاری | Merrytek |
| گواهی | CE |
| شماره مدل | MSA246S IR A2 |
| مقدار حداقل تعداد سفارش | 100 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | جعبه سفید + برچسب جعبه سفید + Clapboard + کارتن (K=A) |
| زمان تحویل | 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 10000 عدد در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ولتاژ ورودی | 100-240VAC | جریان کار | 20mA مکس |
|---|---|---|---|
| مصرف برق | ≤0.5W | تابع | عملکرد روشن/خاموش + خروجی تماس خشک |
| موجود است | آشکارسازهای اشغال و آشکارسازهای حرکت | ارتفاع نصب | 2.5 تا 4 متر |
| نصب و راه اندازی | فلاش نصب شده | اندازه برش | Φ65 میلی متر |
| برجسته کردن | dual channel PIR occupancy switch,flush-mounted motion detector,PIR occupancy sensor with dual output,flush-mounted motion detector,PIR occupancy sensor with dual output |
||
توضیحات محصول
Easy Use Series Dual Channel Output Flush-Mounted PIR Occupancy Switches
Professional-grade PIR occupancy detectors and motion detectors with dual channel output capabilities for industrial and commercial applications.
Key Features
- PIR motion detection technology
- Dual channel output with ON/OFF function or dry contact output
- Daylight threshold working mode with learning function
- Adjustable detection area, hold time, and daylight threshold via remote control or potentiometer
- Maximum detection range: 10-14m diameter
- Push terminal for manual load control
- Full-automatic or semi-automatic operation modes
- Multiple sensor synchronization via parallel S terminal wiring
- Advanced IQ mode for intelligent operation
Technical Specifications
| Input/Output Parameters | |
|---|---|
| Input Voltage | 100-240V AC |
| Rated Voltage | 230V AC |
| Power Consumption | 20mA max |
| Output Signal | ≤0.5W @230V DC |
| Working Mode | ON/OFF + Dry Contact |
| Surge Protection | 2KV(L/N, EN61000-4-5) |
| Surge Capacity | 30A (50% Ipeak, twidth=500us, 230Vac full load, cold start) |
| Load Capacity | Channel one: 1200W resistive or 600W inductive; Channel two: dry contact, 5A 24Vdc max |
| Sensor Parameters | |
| Function | PIR Motion Detection + Daylight Sensor |
| Detection Area | 100%/75%/50%/25% (adjustable) |
| Hold Time | Channel one: 5s/30s/1min/5min/10min/30min Channel two: Test 2s/30s/1min/3min/5min/10min/20min/30min |
| Daylight Sensor | 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable |
| Detection Range | 5-6m tangential at 3m mounting height |
| Mounting Height | 2.5-4m (typical: 3m) |
Dimensions & Function
Wiring Diagram
Important Wiring Notes:
- LN is AC input terminal, L'N is AC output terminal - ensure correct wiring sequence
- Single sensor output limits: resistive loads ≤1200W, capacitive loads ≤800W
- For multiple loads, use AC contactor or solid-state relay to prevent sensor damage
- S synchronization port must NOT be connected to N line (neutral wire)
Initialization & Default Settings
When powered on, the sensor indicator illuminates for 35 seconds for initialization. After this period, sensor parameters can be configured via potentiometer or remote control.
Factory Default Settings:
Detection Area: 100% | Hold Time: 2s | Daylight Sensor: Disable | Daylight Priority: Disable | LED Indicator: ON
Detection Radiation Pattern
Potentiometer Settings
Detection Area
| Gear | Percentage |
|---|---|
| 1 | 25% |
| 2 | 50% |
| 3 | 75% |
| 4 | 100% |
Hold Time
| Gear | Hold Time |
|---|---|
| 1 | Test 2s |
| 2 | 30s |
| 3 | 1min |
| 4 | 5min |
| 5 | 10min |
| 6 | 30min |
| 7 | Pulse Mode |
| 8 | IQ Mode |
Daylight Threshold
| Gear | Threshold Value |
|---|---|
| 1 | 5lux |
| 2 | 15lux |
| 3 | 30lux |
| 4 | 50lux |
| 5 | 100lux |
| 6 | 150lux |
| 7 | Disable |
Remote Control MH10
Application Precautions
- Installation must be performed by qualified electrician with power disconnected
- Optimal installation height: 3m - not suitable for outdoor use
- Avoid locations with temperature/airflow changes to prevent false triggering
- Ensure detection range is unobstructed by furniture, screens, or plants
- No reflective objects should be directly in front of sensor
- Keep minimum 2m distance from electromagnetic radiation sources (Wi-Fi routers, cameras, etc.)
- Sensing distance may vary based on installation height and ambient temperature
Disclaimer
Due to product technology complexity and application environment differences, complete accuracy cannot be guaranteed. Specifications are for reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees.
For more information, please contact our sales representative for detailed specifications.
