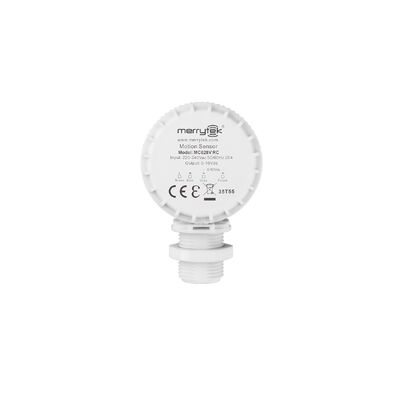

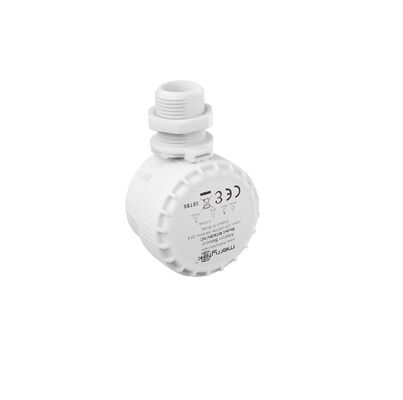

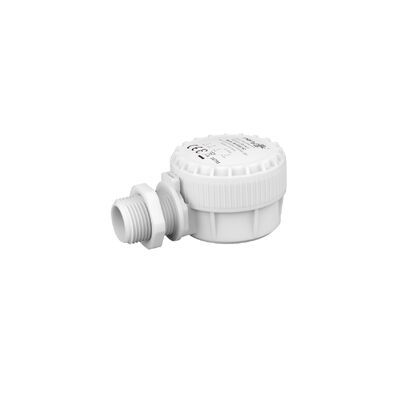

Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light, 12m Max Installation
| محل منبع | شنژن، چین |
|---|---|
| نام تجاری | Merrytek |
| گواهی | CE |
| شماره مدل | MC628V RC |
| مقدار حداقل تعداد سفارش | 100 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | جعبه کاغذ سفید + کارتن |
| زمان تحویل | <i>1, Sample and small order: Within 5 working days after receiving your payment.</i> <b>1، نمونه و |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 10000 قطعه در ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ولتاژ نامی | 120-277VAC 60Hz | حالت کار | 0-10VDmming |
|---|---|---|---|
| دمای عملیاتی | -35°C... +55°C | رتبه بندی IP | IP65 |
| نصب و راه اندازی | نصب جانبی M20 | طول عمر | 5 سال گارانتی @Ta 230V بارگذاری کامل |
| برجسته کردن | warehouse motion sensor side mount,microwave motion sensor trip-proof,high bay light motion sensor,microwave motion sensor trip-proof,high bay light motion sensor |
||
توضیحات محصول
Side Mounting Warehouse Motion Sensor for Linear, Trip-proof And High Bay Light
Side mounting motion sensor designed for linear, trip-proof, and high bay lighting applications in warehouse environments. Maximum installation height of 12 meters.
Key Features
- Operating voltage: 120~277V AC
- Maximum mounting height: 12m
- High-sensitivity and low-sensitivity modes for metal ceiling/reflector environments
- Compatible with 0-10V dimmable LED drivers for 2-step or 3-step dimming
- M20 side mount for linear highbay and tri-proof lights
- Dim+/Dim- function with daylight priority
- 5-year warranty
Technical Parameters
| Input | Operating Voltage Range | 108-305VAC 60Hz |
|---|---|---|
| Output | Working Mode | 0-10V Dimming |
| Type of Load | LED (0-10V LED driver) | |
| Dim Interface | 0-10V Dimming < 50mA (Non-constant source) 10%, 20%, 30%, 50% | |
| Stand-by Power | <1W | |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz, ISM band |
| Transmitting Power | 0.5mW Max. | |
| Hold Time | 5s/30s/1min/3min/5min/10min/20min/30min | |
| Detection Range | See detection pattern | |
| Mounting Height | 12m Max. | |
| Detection Angle | 150° (wall mount), 360° (ceiling mount) | |
| Operating Environment | Operating Temperature | -35℃ to +55℃ |
| Storage Temperature | -40℃ to +80℃ humidity: 10%-95% (non-condensing) | |
| IP Rating | IP65 |
Operating Functions
- ON/OFF Function (stand-by period set to "0")
- 2-step dimming function (stand-by period set to "+∞")
- 3-step dimming function (stand-by period set to "10s/1min/3min/5min/10min/30min")
- Daylight priority (stand-by period set to +∞)
Detection Patterns
Detection area is affected by volume of motion object and motion speed. Testing conducted with 165cm height person walking at 0.5m/s.
Ceiling Mounted Detection
| Height: 3m Sensitivity: 100%/75%/50%/25% |
Height: 6m Sensitivity: 100%/75%/50%/25% |
Height: 9m Sensitivity: 100%/75%/50%/25% |
Height: 12m Sensitivity: 100%/75%/50% |
|---|---|---|---|
|
|
|
|
|
|
|
|
*Only 100%/75%/50% detection sensitivity is workable when installed at 12m mounting height. 25% sensitivity is not able to detect motion signal.
Wall Mounted Detection
| Height: 2m Sensitivity: 100%/75%/50%/25% |
|---|
|
|
Application Guidelines
- Installation must be performed by a qualified electrician with power turned off
- Plastic and glass lampshades reduce sensitivity (20% reduction per 3mm thickness)
- Dimming performance varies with different 0-10V drivers
- Light sensitivity thresholds are measured in sunny environments without shadows
- For indoor use only - outdoor conditions may cause false triggering
- Maintain minimum 3m distance between inductive sensors
- Avoid installation near high-density objects (metal, glass, concrete) to prevent false triggering
- Test 5 samples before mass application in new lighting projects
Factory Default Settings
- Detection area: 100%
- Hold time: 5s
- Stand-by Period: 0s
- Stand-by dim level: 10%
- Daylight Sensor: Disable
