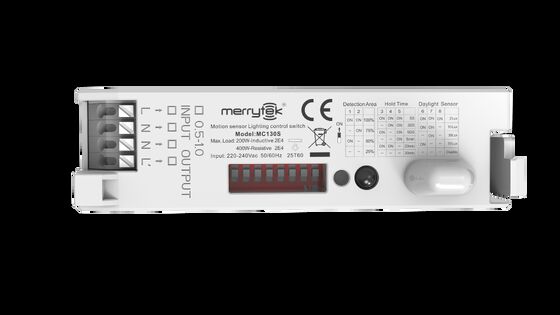

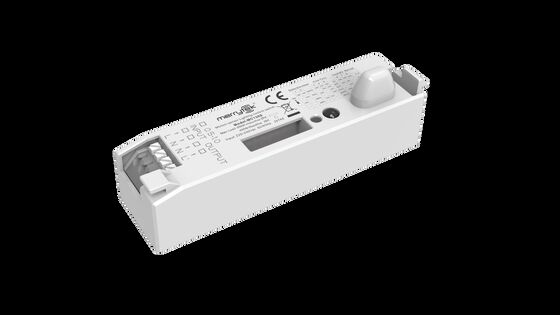

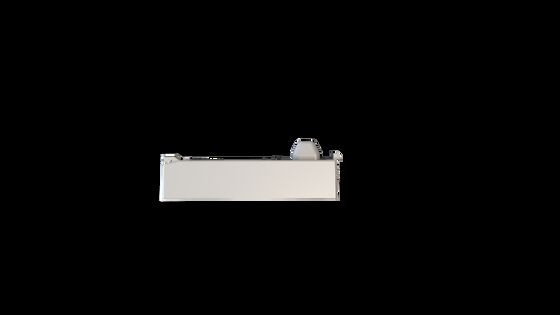

Ceiling Light Long Strip Microwave AC ON/OFF Motion Sensor, Compatible Working With Tri-proof Light
| محل منبع | شنژن، چین |
|---|---|
| نام تجاری | Merrytek |
| گواهی | CE, RED, UKCA, SAA, CB |
| شماره مدل | MC130 |
| مقدار حداقل تعداد سفارش | 100 عدد |
| قیمت | قابل مذاکره |
| جزئیات بسته بندی | کیسه حباب + تخته چوب + کارتن (K=A) |
| زمان تحویل | <i>1, Sample and small order: Within 5 working days after receiving your payment.</i> <b>1، نمونه و |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 10000 PCS/ماه |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| ولتاژ نامی | 220-240VAC 50/60Hz | پاور آماده به کار | ≤0.5W |
|---|---|---|---|
| کنترل خروجی | در خارج | فرکانس عملیاتی | 5.8 GHz ±75MHz، باند موج ISM. |
| دمای عملیاتی | -25 تا 60 درجه سانتی گراد | طول عمر | 5 سال ضمانت @ |
| برجسته کردن | microwave motion sensor ceiling light,long strip motion sensor light,tri-proof light compatible motion sensor,long strip motion sensor light,tri-proof light compatible motion sensor |
||
توضیحات محصول
Ceiling Light Long Strip Microwave AC ON/OFF Motion Sensor
Compatible Working With Tri-proof Light
Product Features
- Patented Mini Coupling DiPole Antenna for ceiling light
- Suitable for built-in metal LED tray without false trigger
- Compact size, does not affect light distribution
- Low sidelobe, no false trigger in metal reflection space
- Low transmitting power, safe for humans
- Sensor data can be set by DIP switch & remote control
- Not affected by temperature, humidity, noise, dust, etc.
Technical Parameters
Input
| Rated Voltage | 220-240VAC 50/60Hz |
| Stand-by Power | ≤0.5W |
| Surge Test | L--N: 1kV |
Output
| Output Control | ON-OFF |
| Load Capacity | 200W (Inductive/LED); 400W (Resistive) |
| Max. Surge Capacity | 10A relay: 30A (50% Ipeak, twidth =200us, 230Vac full load, cold start) |
Sensor Parameters
| Operating Frequency | 5.8 GHz ±75MHz, ISM wave band |
| Transmitting Power | 1mW Max. |
| Detecting Radius | r≥3m @ ceiling mounting, r≥8m @ wall mounting (Motion speed: 1m/s, 100% sensitivity, 165cm person) |
| Mounting Height | 2.5-5m (ceiling mounting), 2-3m (wall mounting) |
Environment
| Operating Temperature | -25~60°C |
| Storage Temperature | -40℃~80℃, Humidity: ≤85% (Non-condensing) |
Certification & Standards
| Certificate | CE, RED, UKCA, SAA, CB |
| Environmental Requirement | Compliant to RoHS 2.0, Reach |
| IP Rating | IP20 |
Other Specifications
| Wiring | Press-in type terminal block, wiring 0.5-0.75mm² |
| Installation | Built-in |
| Package | Bubble bag + Clapboard + Carton (K=A) |
| Net Weight | 36g±3g |
| Lifetime | 5 years warranty |
Function Overview
| Function | Description |
|---|---|
| ON-OFF Function | Setting daylight sensor to "disable" or ambient brightness is lower than the preset daylight sensor value, when detecting moving signals sensor starts working and light will turn on. When hold time ends, light will turn off. |
| 2-step Dimming | N/A |
| 3-step Dimming | N/A |
| Daylight Harvesting | N/A |
| Daylight Priority | N/A |
Product Information
Wiring and Function Diagram
The sensor is designed for connecting one load only. Connecting more than one load may damage the sensor.
Installation Instructions
Recommended for use on ceiling lights
Screw Installation
Snap-in Installation
Note: Please check the sensor installation method with Merrytek before designing any luminaire.
Cut Size
Initialization & Default Settings
Initialization
After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10 seconds. During initialization, sensor is not able to detect movement.
Default Setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable
Application Notice
- Sensor should be installed by a professional electrician. Please turn off power before installing, wiring, or setting the DIP switches.
- Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.
- Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials, etc. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
- The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
- The installation spacing between sensors is recommended to be greater than 2m, and the installation spacing between sensors and routers is recommended to be greater than 2m.
- Sensor should not be covered or hidden by metal, PCB, LED tray, etc. The spacing between the sensor antenna and surrounding materials should be greater than 5mm. There should be no metal or PCB tracks near the sensor antenna, above or below it. The recommended thickness of cover is 2mm, and keep the spacing between the sensor antenna and cover is greater than 3.2mm.
- Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from objects that vibrate for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may cause false trigger.
- The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting the normal operation of microwave sensor's antenna.
- Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
