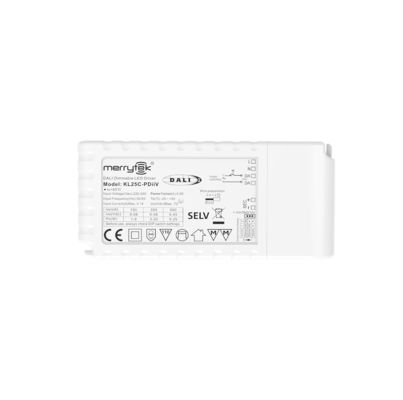

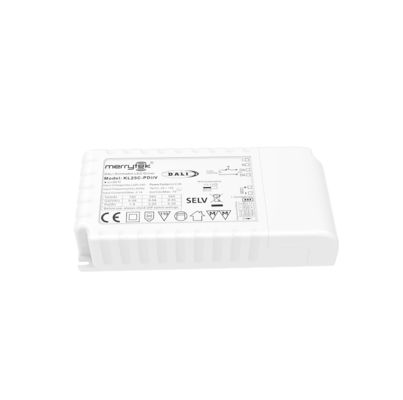

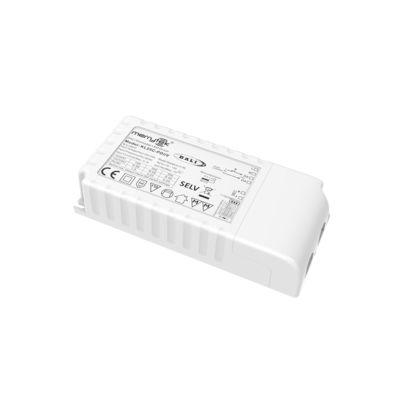

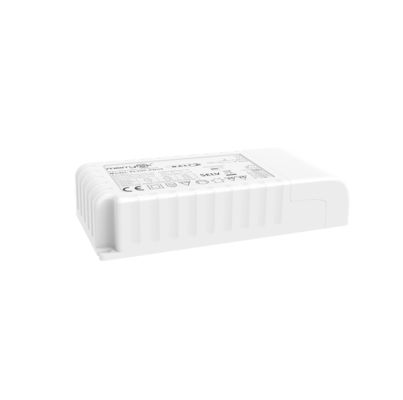

25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty

  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
  • 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty
محل منبع چین
نام تجاری Merrytek
گواهی CE / RoHS
شماره مدل KL25C-PDiiV
مقدار حداقل تعداد سفارش 100 قطعه
قیمت قابل مذاکره
جزئیات بسته بندی ابتدا در کیسه حباب بسته بندی شده و سپس با کارتن برای بسته بندی بیرونی تقویت می شود
زمان تحویل 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت
شرایط پرداخت T/T یا Western Union
قابلیت ارائه 10000 عدد در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
تائیدیه CE، REACH، ROHS ولتاژ دارای امتیاز 220-240 ولت AC 50 هرتز / 60 هرتز
نام محصول درایور LED قابل تنظیم DALI 2.0 توان خروجی بار کامل حداکثر 25 وات
ولتاژ خروجی بار 9-58 ولت حالت کم نور DALI، PUSH، 1-10 ولت
دمای کار -40 ℃ -80 جریان خروجی 150/350/550 میلی آمپر
برجسته کردن

25W DALI2 dimmable LED driver,slim LED driver with warranty,550mA dimmable LED power supply

,

slim LED driver with warranty

,

550mA dimmable LED power supply
پیام بگذارید
توضیحات محصول
25W CC 150mA to 550mA DALI2 dimmable slim LED driver with 5 years warranty
Product Description
  • Built-in DALI2 protocol, no flicker in full dimming range
  • Primary Push dimming function with state memory
  • Short circuit / over temperature / over voltage protection
  • Standby power consumption ≤ 0.5W
  • 5 years warranty
Specifications
Input
Voltage range 198~264Vac 50Hz/60Hz
Rated supply voltage 220~240Vac 50Hz/60Hz
DC voltage range 200~240Vdc
Input current 0.14A Max.@230Vac
Inrush Current 8A (Half current pulse width 50us) @230VAC
Power factor ≥0.95 (@230Vac, 500mA/45Vdc, 100% load)
Total harmonic distortion Typical: 20% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 86%Max
Wiring method Push terminal, wire cross section:0.75-1.0mm²
Loop-in & Loop-out quantity 30PCS(@230Vac)
Output
Operating mode Constant current
Load type LED
Flickering / Flickering-Free Flickering-Free
Start up time <1s (@230Vac)
Load output voltage range 9-58Vdc
Load output current 150mA(9-58Vdc), 350mA(9-58Vdc), 550mA(9-45Vdc)
Full load output power 25W Max.
No load output voltage 72Vdc Max.
Output current/voltage tolerance ±5%
Wiring method Push terminal, wire cross section:0.75-1.0mm²
Control Method
Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
DALI function DALI dimming (Max. lead wire length:300m)
1-10V Dimming 1-10V
Output auxiliary power port 12Vdc, 0.1A Max.
Sensor Dimming port 1-10V
Exception Protection Requirements
Output over temperature protection Yes, reset power on to recover
Output short circuit protection Yes, reset power on to recover
Operating Environment
Operating temperature/humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/humidity -40℃~80℃, Humidity:10%-85% (Non-condensing)
Max. case temp(Tc) 85℃
Safety & EMC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standard IEC62386-102, IEC62386-207
Safety standard EN61347-1, EN61347-2-13
Certification CE
Others
Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Installation dimension 110*50*23.5mm
Memory function Yes, (PUSH with memory function)
PUSH dimming synchronization Parallel: 15 units Max. Series: 25 units Max.
Weight 140±5g
Life 5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.
Dimension (Unit:mm)
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 0
Wiring Diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 1 25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 2
1) PUSH Dimming wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 3
2) DALI wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 4
3) 0-10V dimming wiring diagram
25W CC 150mA to 550mA DALI2 dimmable slim led driver with 5 years warranty 5
Current Gear Setting
Current gear setting 1 2
550mA (9-45Vdc) ● ●
350mA (9-48Vdc) ● ○
150mA (9-48Vdc) ○ ○
ON/OFF & Description of Dimming Operation
  • A. Short press the PUSH switch (0.1s-1s) to turn on/off
  • B. Press and hold (1s-8s) for dimming (2-100% range)
  • C. PUSH dimming has memory function
  • D. Dimming synchronization: hold PUSH switch >15s
  • E. DALI dimming mode: 0-100% range via DALI host
Important Notes
  • Connect load before powering on to prevent damage
  • Output maintains residual voltage (~3 minutes) after power off
