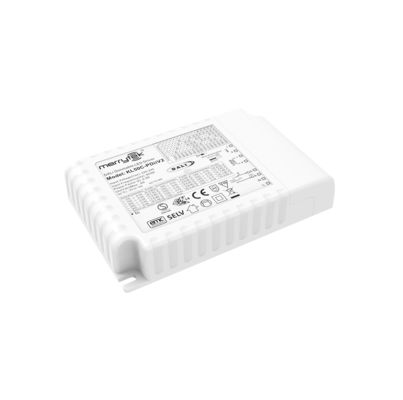

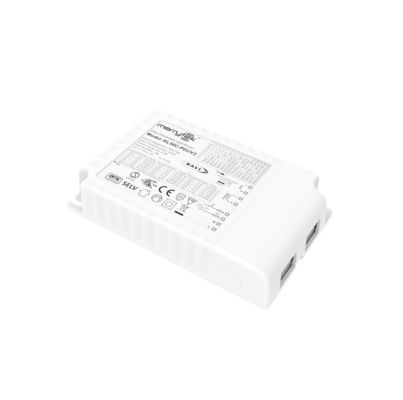

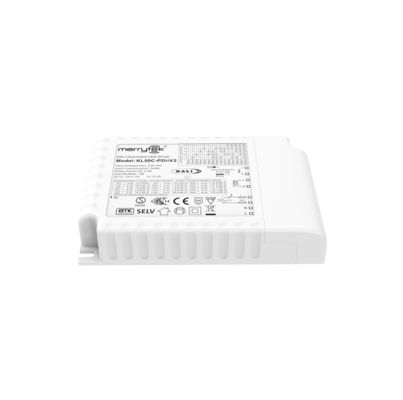

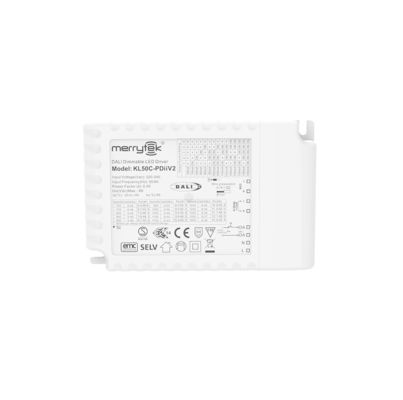

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel

  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
  • 50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel
محل منبع چین
نام تجاری Merrytek
گواهی CE
شماره مدل KL50C-PDiiV2
مقدار حداقل تعداد سفارش 100
قیمت قابل مذاکره
جزئیات بسته بندی جعبه سفید + کارتن، 50 عدد / CTN
زمان تحویل 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت
شرایط پرداخت T/T یا PayPal
قابلیت ارائه 10000 عدد در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
ولتاژ ورودی دارای امتیاز 220-240Vac 50Hz /60Hz محدوده ولتاژ ورودی DC 200-240Vdc
حالت عملیاتی جریان پایدار روش کنترل درایور برق LED DALI2 & PUSH و 0-10 ولت کم نور
عامل قدرت 95 ≥ کارایی 86%
جاری 700-1400ma بعد 123x79x24mm
رتبه بندی IP IP20 گارانتی 5 سال
پیام بگذارید
توضیحات محصول

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel



1. Description

-Flicker-free for the whole dimming range

-Primary dimming with push button

-Secondary dimming with 1-10V dimmer and potentiometer

-Stand-by power below 0.5W

-Built-in DALI interface DT6

-Supports 10V PWM dimming (3KHz-8KHz)

-Protection: short circuit / over temperature/ over voltage

-Derating the current for high ambient temperature

-5-year warranty



2. Parameters

Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Cuttent 0.28A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total harmonic distortion Typical: 13% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac when PUSH or DALIturn off)
Efficiency 86%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 28 40 45 55 70 90
Output Operating mode Constant Current
Load type LED
Flickering / Flickering-Free Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 68VDC Max.
Load output voltage range 9-58VDC
Full load output power 50W Max.
Load output current 700~1400mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method

Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V Dimming 1-10V dimming(Port current＜1MA)
(Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC SEMKO CB CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 123*79*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 210g
Life 5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.



3. Dimension (Unit: mm)

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 050W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 1

4. Wiring Diagram

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 2

Fig. A DALI Dimming

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 350W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 4

Fig.B Push Dimming

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 5

Fig. C 1-10V Dimming



5. Derating

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 6

6. Dimming curve

50W 700ma to 140ma programmable DALI2 & PUSH & 0-10V dimmable led power driver for LED panel 7

7. Current gear setting

Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4 5
700 - - - - - 40.6 9～ 58
750 ON - - - - 43.5 9～ 58
800 - ON - - - 46.4 9～ 58
850 - - ON - - 49.3 9～ 58
900 - - - ON - 52.2 9～ 58
950 - ON ON - - 50.4 9～ 53
1000 ON ON ON - - 50.0 9～ 50
1050 ON ON - ON - 50.4 9～ 48
1100 ON - ON ON - 49.5 9～ 45
1150 - ON ON ON - 49.5 9～ 43
1200 - ON - ON ON 50.4 9～ 42
1250 ON ON - ON ON 50.0 9～ 40
1300 ON - ON ON ON 49.4 9～ 38
1350 - ON ON ON ON 50.0 9～ 37
1400 ON ON ON ON ON 50.4 9～ 36



8. ON/OFF & Description of Dimming Operation

A. Short-press the PUSH switch (short-press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. Matters needing Attention

1) The LED string must be connected to the load before turning on the input power; otherwise, the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
