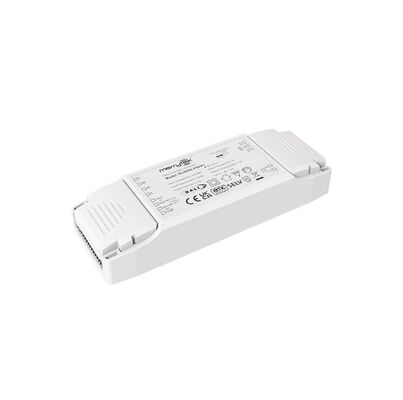

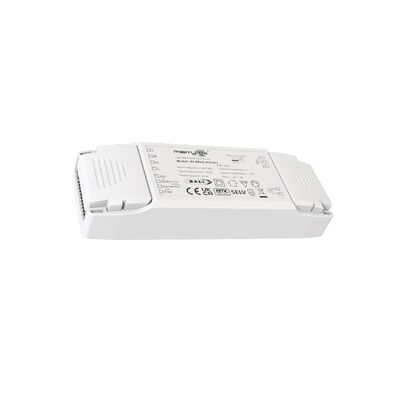

40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty

  • 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty
  • 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty
محل منبع چین
نام تجاری Merrytek
گواهی CE
شماره مدل KL40VC-PDiiV1
مقدار حداقل تعداد سفارش 100
قیمت قابل مذاکره
جزئیات بسته بندی جعبه سفید + کارتن، 50 عدد / CTN
زمان تحویل 1 ، نمونه و سفارش کوچک: ظرف 5 روز کاری پس از دریافت پرداخت خود. 2 ، سفارش فله: 3-4 هفته پس از دریافت
شرایط پرداخت T/T یا PayPal
قابلیت ارائه 10000 عدد در ماه

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
ولتاژ ورودی نامی 220-240Vac 50Hz /60Hz محدوده ولتاژ ورودی DC 200-240Vdc
حالت عملیاتی درایور LED قابل تنظیم 24 ولت روش کنترل DALI2، PUSH، 0-10Vdc
عامل قدرت 95 ≥ کارایی 89 ٪
ولتاژ ثابت 24 ولت سی سی بعد 150x52x28mm
رتبه بندی IP IP20 گارانتی 5 سال
برجسته کردن

40W DALI DT8 dimmable LED driver,24V dimmable LED strip driver,DALI2.0 LED driver with warranty

,

24V dimmable LED strip driver

,

DALI2.0 LED driver with warranty
پیام بگذارید
توضیحات محصول
40W 24 Volt Dimmable LED Driver DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty

High-performance 40W LED driver with multiple dimming options and robust protection features.

Key Features
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL40VC-PDiiV1
Input
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current 0.21A Max.@230Vac
Inrush Current 15A (Half current pulse width 100US) @230VAC
Power factor ＞ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 16% (@230Vac, 100% load)
Stand-by power ≤0.5W
Efficiency(@230Vac,100% load) 89%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm2
Loop-in&Loop-out quantity 30PCS(@230Vac)
Output
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Load output voltage range 24V CV
Load output current 1.67A Max.
Full load output power 40W Max.
Minimum load 3W
Output current/voltage tolerance ±5%
Wiring method Push terminal, wire cross section:2*0.5-2.0mm2
Control Method
Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
1-10V(0-10V)Dimming 0-10V dimming(Port current＜1mA), (Max. lead wire length:20m)
Dimming Range 0%-100%
Secondary PWM dimming 0-10V port PWM dimming (3KHz-8KHz)
Potentiometer Yes, 100kΩ
DALI function DALI dimming (Max. lead wire length:300m)
Exception Protection Requirements
Output over temperature protection Yes, reset the power to recover
Output short circuit protection Yes, reset power to recover
Operating Environment
Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%-95%
Max. case temp(Tc) 85℃
Safety & EMC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standard IEC62386-101 / 102 / 207 DT6 / 209 DT8
Safety standard EN61347-1, EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input "L N"- Output "SEC")
Others
IP Rating IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 150*52*28mm
Memory function Yes, (PUSH with memory function)
PUSH dimming synchronization Parallel: 15 units Max. Series: 25 units Max.
Packaging requirements Instruction+clapboard+outer carton(K=A)
Weight 300g
Life 5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified.
Dimensions
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 1
DALI Dimming
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 2
Push Dimming
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 3
Derating
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 4
Dimming Curve
40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 5 40W 24 volt dimmable led driver DALI DT8 led strip dimmable driver with 5-year warranty 6
Operation Instructions
  • A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
  • B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.
  • C. Color temperature adj: Step 1, PUSH turns off the lights; Step 2, press and hold PUSH to adjust the color temperature starting from the current brightness; Release PUSH, press and hold PUSH again, and adjust the color temperature in the opposite direction; No operation for 5 seconds, exit color adjustment mode.
  • D. Memory: PUSH dimming has a dimming memory function.
  • E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
  • F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
  • G. Constant voltage dimming drivers cannot be used in lamps with constant current circuits.
Note: All parameters are tested at an input voltage of 230VAC and a temperature of 25°C, unless otherwise specified.
